Pipeline Infrastructure is a Critical element of Energy Delivery Systems. Its Failure can affect both public health & safety directly & indirectly through impacts on the Energy supply. In the USA with the passage of Pipeline Safety Improvement Act (PSIA) in 2002, the pipeline Owners are required to invest significantly more capital to Inspect and maintain their systems
PSIA Stipulates Enhanced Monitoring & Maintenance Programmes for continuing Integrity Inspection of all Pipelines located within high consequence areas (HCA) where a Pipeline failure could Threaten Public Safety, Property, and Environment
For this reason, it is vitally important that Pipeline Operators Maintain accurate, Integrated Information on their Pipeline system from construction and Installation through Operation, Inspection & Maintenance
Ever-Increasing Number of Energy Pipelines Operating Already & More Being Laid particularly in Urban Environments, Data Collection & Integration Assumes even more Importance to ensure that the Current Condition of the Pipeline system is well managed to Prevent Adverse Impacts to the Population centers they serve
The Key to Integrity Management Programme is:
- To Know where Potential Problems Lie
- To Understand How Severe the Problem might be
- How Best to Manage these Problems
- Once pipeline leak commences it progresses at an exponential rate.
- Corrosion can be controlled within acceptable limits by the application of cathodic protection from the construction stage.
- Cathodic Protection (CP) Of Pipelines Ensures Prevention of Loss of Metal to Earth due to Soil-side Corrosion. This is a Dynamic Process & Requires Close Monitoring of C P Parameters
- If C P System Fails or is not performing as per Design, Corrosion Protection is In-Effective.
- The Efficacy of C P depends on continuous Monitoring to Ensure the Desired Level of Parameters.

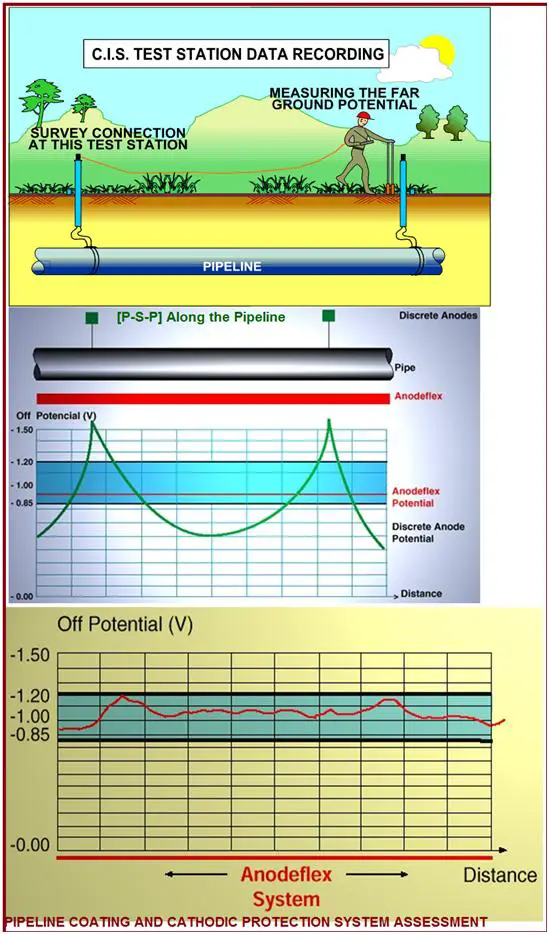

- Pipe to Soil Potential [P-S-P] (Fig. 2) is monitored
- [P-S-P] Vs CSE to be in the Range
- (-) 0.85 Minimum to (-) 1.5 V Maximum when Anaerobic Bacteria are absent [No SRB] and (-) 0.95 Minimum to (-) 1.5 V Maximum when [SRB] are present.
- CSE to be calibrated daily
- One Standard CSE and at least Three more CSE should be in the field
- Field Manpower should be skilled, trained & experienced
- All Rectifiers should be switched On & Off simultaneously
- Same time cycle to be used throughout
- AC measurement Voltmeter should also be available
- Only High Impedance Voltmeter to be used
- Equipment of Standard make & proven capability to be used
- Multichannel Recording capability
- The Record should be field verifiable through computer display in the field
- Recorded Data should be Downloaded

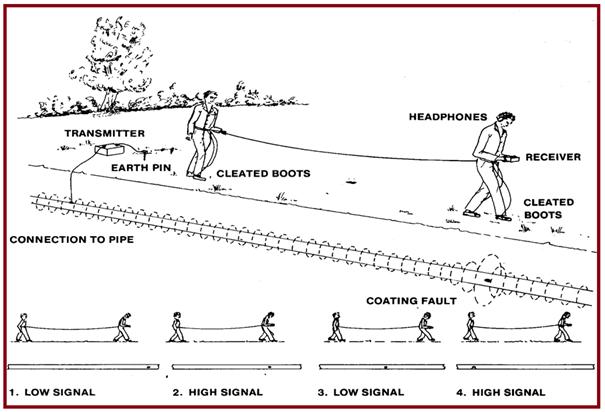

Pearson Survey (Fig. 5)
- This is an A-C Technique
- 50 HZ A-C Interferes
- Effective up to 80% due to field variations
- Defect Sizing not possible
- Defect Pinpointed location within 5M
- Bore-Hole checks reveal survey efficacy
- It gives the operator a fast and reliable way to narrow down the areas of concern where more detailed and time-consuming surveys can be performed.
This is an A C technique
Current Attenuation can be performed with various electromagnetic tools including the Pipeline Current Mapper and Precision Pipe Locator for AC attenuation and the Stray Current Mapper for DC attenuation. The pipe is located and the depth of cover is determined while simultaneously obtaining current measurement and current direction. All the data is captured and stored into a portable submeter GPS instrument for later download into a computer for data compilation and interpretation.
Some advantages of current attenuation include:
- Measurements can be taken at 50 foot, 100 foot or larger intervals. Does not need to be take every 5 feet to be effective.
- Measurements can be taken over many types of cover including concrete, rocks, pavement, and water with no detrimental effect.
- It allows the operator a quick way to determine the overall pipeline coating condition.
- Allows the operator to obtain information very quickly on the electrical CP circuit and whether there are shorts, bonds or other unknown areas of concern.
Alternating Current Voltage Gradient
An ACVG survey is a very accurate and precise technique for identifying cable breaks, holidays and even the position of anodes. It can be used as a macro and micro tool to pinpoint large to very small holidays in a pipeline section. It will give readout in dBmV which is used in conjunction with the other surveys to allow the operator to determine the severity class of minor, moderate or severe. It is generally quicker than a DCVG survey.
Some advantages of an ACVG survey include:
- Works in various soil conditions (although ground contact can affect readings).
- More sensitive over pavement than other voltage gradient surveys (must wet down the pavement and may require holes in new oily pavement).
- Less susceptible to existing or stray direct currents.
- Identifying shorted casings.
- High accuracy in locating defects.
- Suitable for complex piping arrangements and in congested city areas.
- Involves no trailing wires.
- Can be used in combination with other techniques.
- Readings are digitally displayed and no side drain is necessary.
- It requires only a single operator.
Survey Data to be collated for Deciphering Problem Areas & Effective Measures to counter the problems detected
Post Mitigative Measures installation further surveys to evaluate Adequacy of installed mitigative measures
Frequency of such surveys thereafter periodically
The Safety factor question has been settled many times by Research, Experience and Tests. In service underground pipelines are safe if they are maintained properly and protected against Corrosion, that Devours the Vitals unchecked and undetected, and third party damage.
